Premium High-Quality Press Brake Clamping System | Fast Manual Lever Quick Clamp
Fast Manual Lever Quick Clamp – Reduce Setup Time by Up to 80%, Deliver Superior Precision, Safety & Durability
High-Quality Press Brake Clamping System
Our high-quality press brake clamping system is engineered with precision and built to last. It gives your existing press brake a powerful upgrade — dramatically cutting tool change time, ensuring secure and accurate tool seating, and enhancing overall bending performance and operator safety.
With simple manual lever activation and robust construction, it transforms slow, labor-intensive setups into fast, reliable operations while maintaining consistent high-quality bends.
- Lightning-Fast Tool Changes: Simple lever activation clamps 15 modules in just 30 seconds. Total setup time drops from 570 seconds (9'30") with traditional screw systems to only 116 seconds (1'56")
- Superior Quality & Precision Engineering — Secure clamping with self-seating design ensures uniform tool seating, no slippage, and consistent bending accuracy every time.
- Enhanced Safety Features: Built-in safety prevention avoids accidental release. Individual tool extraction (lift, rotate, extract) reduces risk and operator fatigue.
- Minimized Waste & Higher Productivity: Reduces lead time, eliminates scrap from poor seating, and increases daily output. Supports front and back simultaneous loading.
- Robust Durability & Flexibility: Heavy-duty construction with sectionalized design for box bending or solid beam setups. Tool-free clamp plate attachment for easy maintenance and long service life.
- Broad Compatibility: Supports European/Amada style punches and offers special models for conversions between Amada/European, Trumpf, Wila, LVD, Bystronic, and American systems.
Available Models & Styles

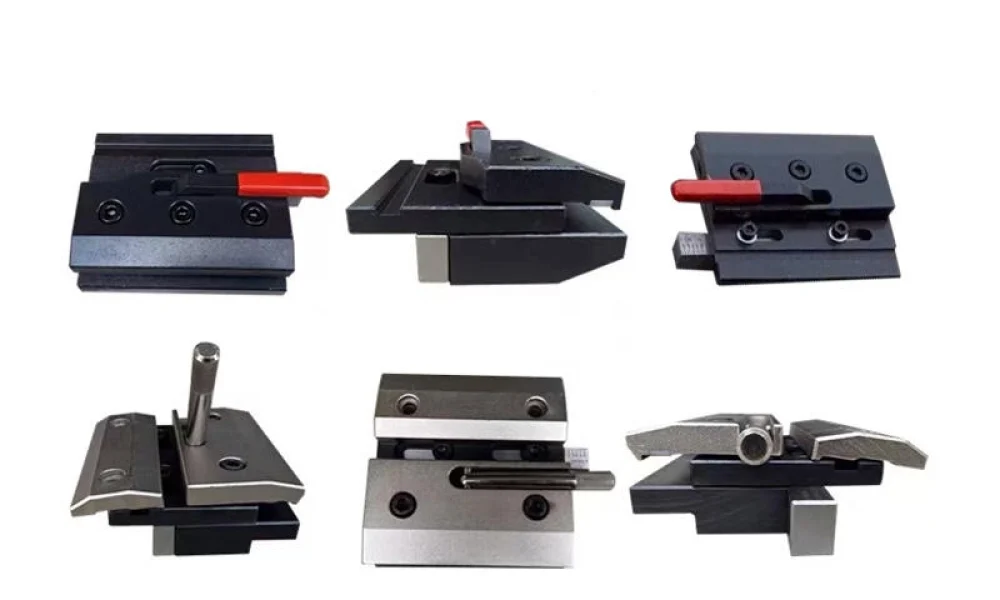

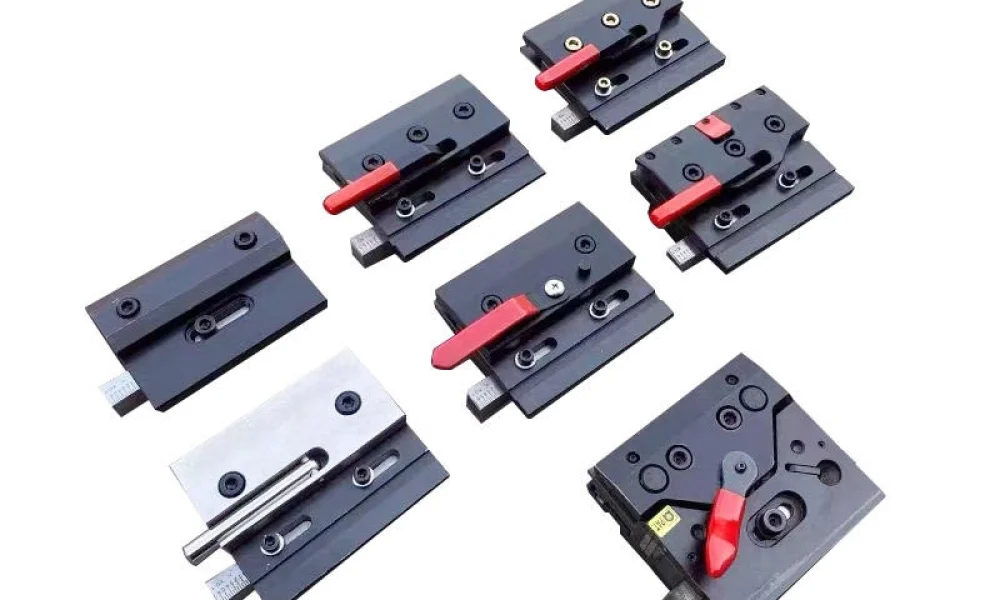

Standard Models

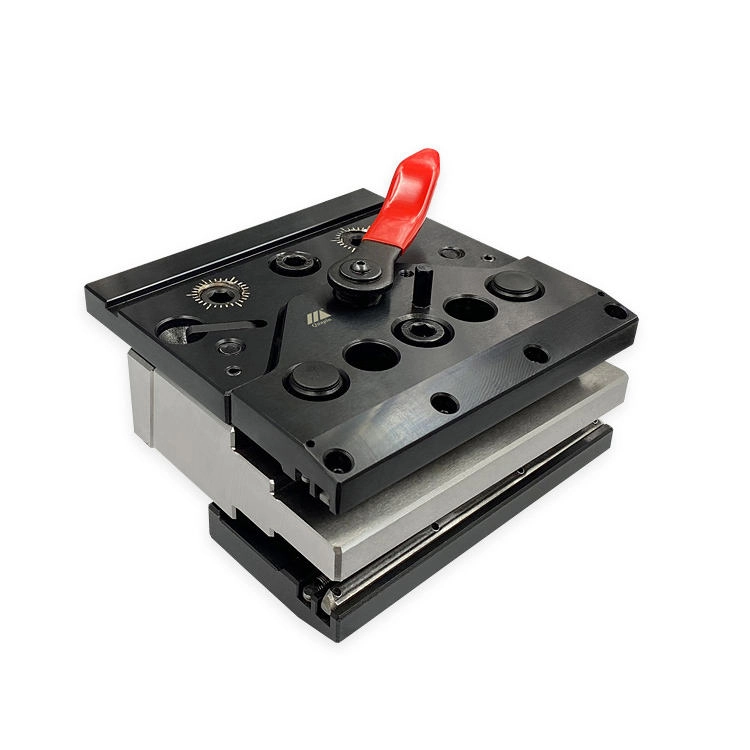

- Manual lever-activated clamping for European/Amada top tools
- Frontal loading and automatic housing
- Heights: 100mm+30mm, 120mm+30mm, 150mm+30mm (custom available)
- Bending axes: 7mm or 20mm
- Options: Clamping + self-seating or traditional clamping only
Special Clamp Series
- Multi-tooling conversion capability
- Sectional lengths: L50mm, L100mm, L150mm
- Ideal for mixed tooling environments and complex bending jobs
Key Quality Highlights
- Tool-free attachment and removal
- No loose punches — secure seating every time
- Sectionalized design for maximum flexibility
- Retrofits easily to existing press brake holders
- High-quality materials and precision machining for long-term durability and reliability
Technical Specification
| OPERATION | TRADITIONAL MODEL MANUAL WITH SCREWS | ACCURTOOL QUICK CLAMP |
|---|---|---|
| Screw loosening | 30 screws = 5' total=150" | 15 modules by lever=2' total=30" |
| Tool extraction | Lateral = 25' total= 100" | Frontal =8' total= 32" |
| Tool loading | Lateral = 25' total= 100" | Lateral=6' total=24" |
| Pre-screwing 30 screws | 4' total= 120" | – |
| Light pressing to house tools | 10' total= 10" | – |
| Screwtightening 30 screws | 3' total= 90" | – |
| clamping 15 modules by ergonomic lever | – | 4' total = 30" |
| TOTAL TIME | 570"=9',30" | 116"=1',56" |
- Activation: Ergonomic manual lever
- Tool Compatibility: European, Amada, and multi-brand conversions
- Mounting Styles: American, WT, and more
- Unit Height: 100–150mm + 30mm (customizable)
- Bending Axis: 7mm / 20mm
- Safety: Built-in release prevention and individual extraction
Our high-quality clamping systems deliver immediate ROI through faster setups, better bends, reduced downtime, and enhanced safety. Whether you need reliable daily performance or support for high-mix production, we have the perfect solution.
